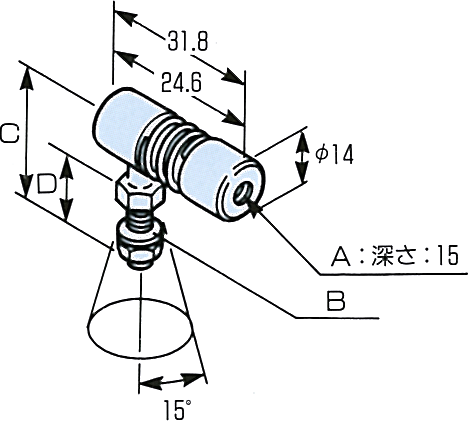

(1)Ball Joint
（quick release type）
main material:stainless steel
| Cable | P/N | A | B | C | D |
|---|---|---|---|---|---|
| 30L,30 series | T1032 | #10-32UNF | M6×1.0 | 27.7 | 15 |
| T1034 | #10-32UNF | #5/16-24UNF | 34.7 | 22 | |
| T1055 | #10-32UNF | M8×1.25 | 34.7 | 22 | |
| J30L,J30 series | T1033 | M5×0.8 | M6×1.0 | 27.7 | 15 |
| 40 series | T1036 | #1/4-28UNF | M6×1.0 | 27.7 | 15 |
| T1038 | #1/4-28UNF | #5/16-24UNF | 34.7 | 22 | |
| J40 series | T1037 | M6×1.0 | M6×1.0 | 27.7 | 15 |
| 60 series | ND0345 | #5/16-24UNF | M8×1.25 | 34.7 | 22 |
| J60 series | T1053 | M8×1.25 | M8×1.25 | 34.7 | 22 |
【About maintenance & inspection】
For safe use of the ball joint, please perform the following periodical inspection. In particular for electronic remote control actuator operation, please make sure that the Fwd – Neu -Rev stroke settings of the mechanical push-pull cable match the stroke requirements of the engine. In addition, please make sure to apply grease to the ball joint & sleeve components regularly .

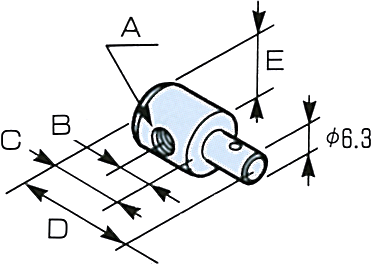

(2)Pivot
（standard pivot）
main material:stainless steel
| Cable | P/N | A | B | C | D | E |
|---|---|---|---|---|---|---|
| 40 series | ND0337 | #1/4-28UNF | 6.3 | 10.8 | 18.5 | φ12.7 |
| J40 series | ND0336 | M6×1.0 | 6.3 | 10.8 | 18.5 | φ12.7 |
（i） mounting plate thickness:3.2m
（ii）mounting plate hole diameter: φ6.35mm
（iii）please use cotter pin: φ2.5×12～16（JIS 1351）

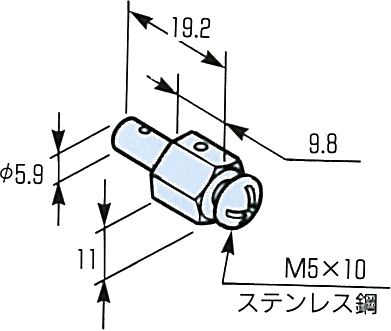

（special pivot）
p/n: ND0326-00
body material: brass
This special pivot is used for 30L & 30 series cables with no rod..
（i） mounting plate thickness 4.8mm
（ii）mounting plate hole diameter: φ6mm
（iii） please use cotter pin: φ2.5×12～16（JIS 1351）

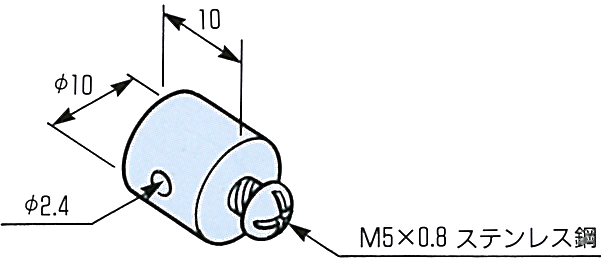

(core collar)
p/n: ND0379-00
for 30L series
body material: brass

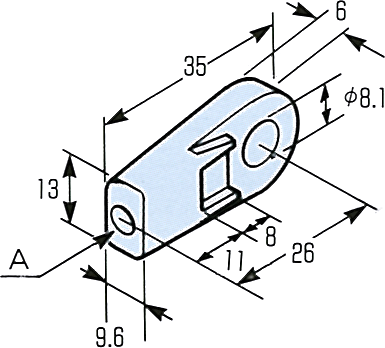

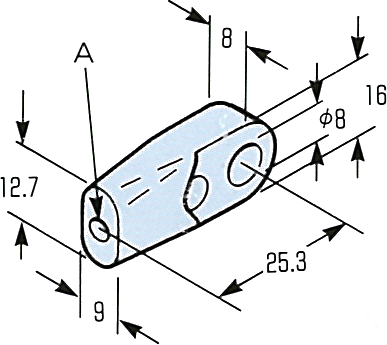

(3)terminal eye
material: polyacetal
| Cable | P/N | A |
|---|---|---|
| 30、30L series | ND0397-00 | #10-32UNF |
| J30、J30L series | ND0602-00 | M5×0.8 |
| J40 series | A037639-01 | M6-1.0 |
material: aluminum
| Cable | P/N | A |
|---|---|---|
| 30、30L series | NBO100-41 | 10-32UNF |
| J30、J30L series | NBO100-46 | M5×0.8 |
| 40 series | NBO100-47 | 1/4-28UNF |
| J40 series | NBO100-48 | M6×1.0 |

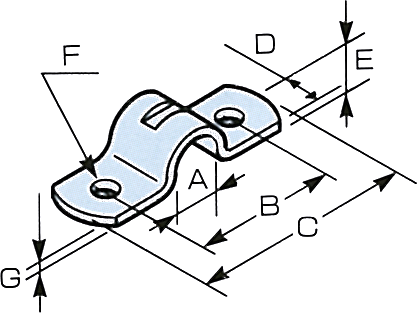

(4)clamp
Picture shows A31509. The shape of other clamps varies slightly.
| Cable | P/N | A | B | C | D | E | F | G | Material | Surface Treatment |
|---|---|---|---|---|---|---|---|---|---|---|
| 30、J30、30L series | A31509 | 9.6 | 25.4 | 38.1 | 12.7 | 10.6 | φ5.2 | 1.6 | soft iron | zinc plating chromate |
| NBO100-42 | 12 | 27.5 | 42 | 12 | 10.8 | 6×8.5 | 1.5 | stainless steel | – | |
| 40、J40 series | A31532 | 12.7 | 25.4 | 38.1 | 12.7 | 11.1 | φ5.6 | 2.3 | soft iron | zinc plating chromate |
| J31532 | 12.8 | 30 | 40 | 13 | 14.1 | φ5.6 | 2 | soft iron | zinc plating chromate | |
| 60、J60 series | A36733 | 14.3 | 31.8 | 44.5 | 15.9 | 16 | φ7.1 | 2.3 | soft iron | zinc plating chromate |

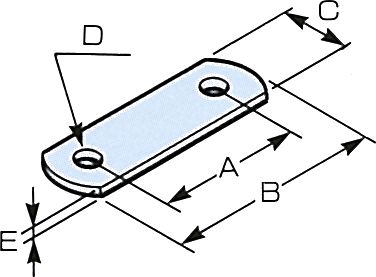

(5)shim
Picture shows A31538. The shape of other clamps varies slightly.
| Cable | P/N | A | B | C | D | E | Material | Surface Treatment |
|---|---|---|---|---|---|---|---|---|
| 30、J30、40、J40 series | A31538 | 25.4 | 38.1 | 12.8 | φ5.2 | 2.3 | soft iron | zinc plating chromate |
| NBO100-43 | 27.5 | 42 | 12 | 6×8.5 | 3 | stainless steel | – | |
| J31538 | 30 | 42 | 13 | φ6.6 | 2.3 | soft iron | zinc plating chromate | |
| 60、J60 series | A37884 | 31.8 | 44.5 | 15.9 | φ7.1 | 2.2 | soft iron | zinc plating chromate |
(6)clamp shim kit
| Cable | Kit P/N | Component | |
|---|---|---|---|
| Clamp | Shim | ||
| 30、J30 series | A31804 | A31509 | A31538 |
| 40、J40 series | A42756 | A31532 | A31538 |
| J42756 | J31532 | J31538 | |
| 60、J60 series | A37885 | A36733 | A37884 |

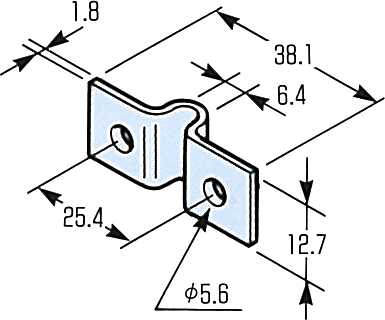

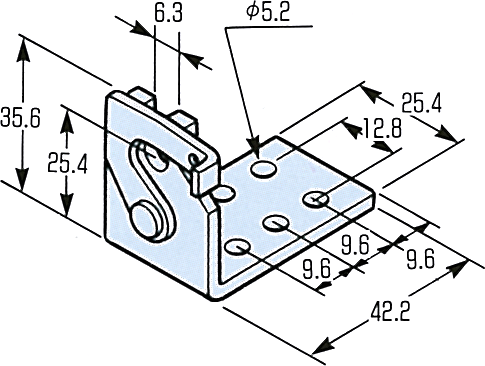

(7)Special clamp
cable: 30L、J30L
p/n : A43229
material : mild steel
surface treatment: zinc plating chromate
Fix onto cable without hub.

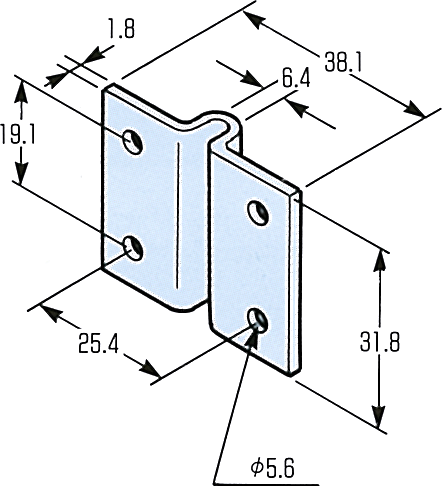

cable: 30L、J30L
p/n: A37664
material: mild steel
surface treatment: zinc plating chromate
(8)cable hook clip
(single)
p/n: A36174-00
material: stainless steel
fix onto a C type hub cable

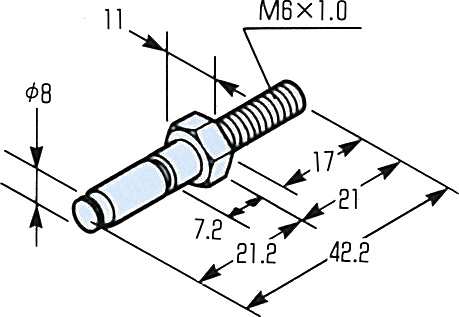

(9)terminal eye pin
p/n: ND0301-00
| Part Name | Qty | Material | Surface Treatment |
|---|---|---|---|
| terminal eye pin | 1 | brass | – |
| flat washer （M8） | 2 | copper | zinc plating chromate |
| C-ring （φ6） | 1 | stainless steel | |
| hex nut （M6） | 1 | copper | zinc plating chromate |
| int. tooth lock washer （M6） | 1 | stainless steel |
Note: Please purchase terminal eye seperately. Determine compatibility according to cable to be used

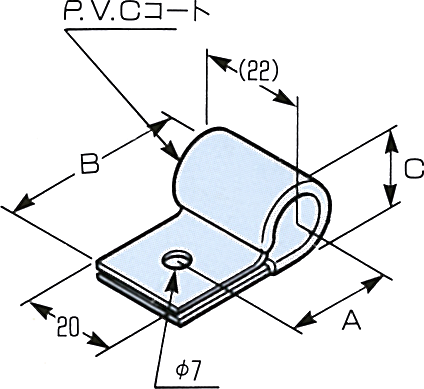

(10) cable support
material: mild steel
surface treatment: zinc plating chromate
Picture shows installation.
| Cabel | P/N | A | B | C |
|---|---|---|---|---|
| 30 series | T1047-30 | 16 | (34) | （φ15.5） |
| 40 series | T1047-40 | 17 | (36) | （φ17.5） |
| 60 series | T1047-60 | 18 | (38) | （φ20.5） |
