KL SeriesMechanical Remote Control: Single Lever

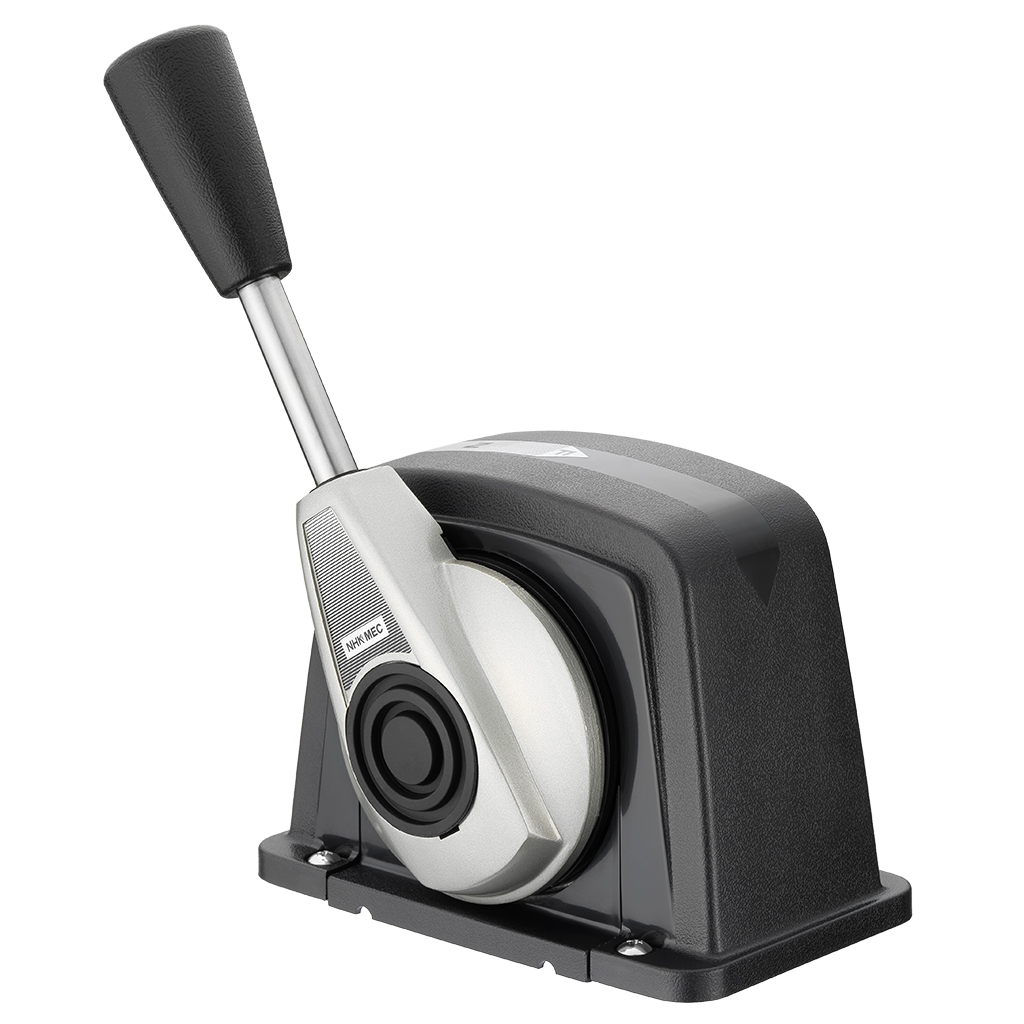

KL TOP

KL TOP

  • net weight 2.3kg　(gross 2.7kg)
  • picture show is of a right handle version in neutral position

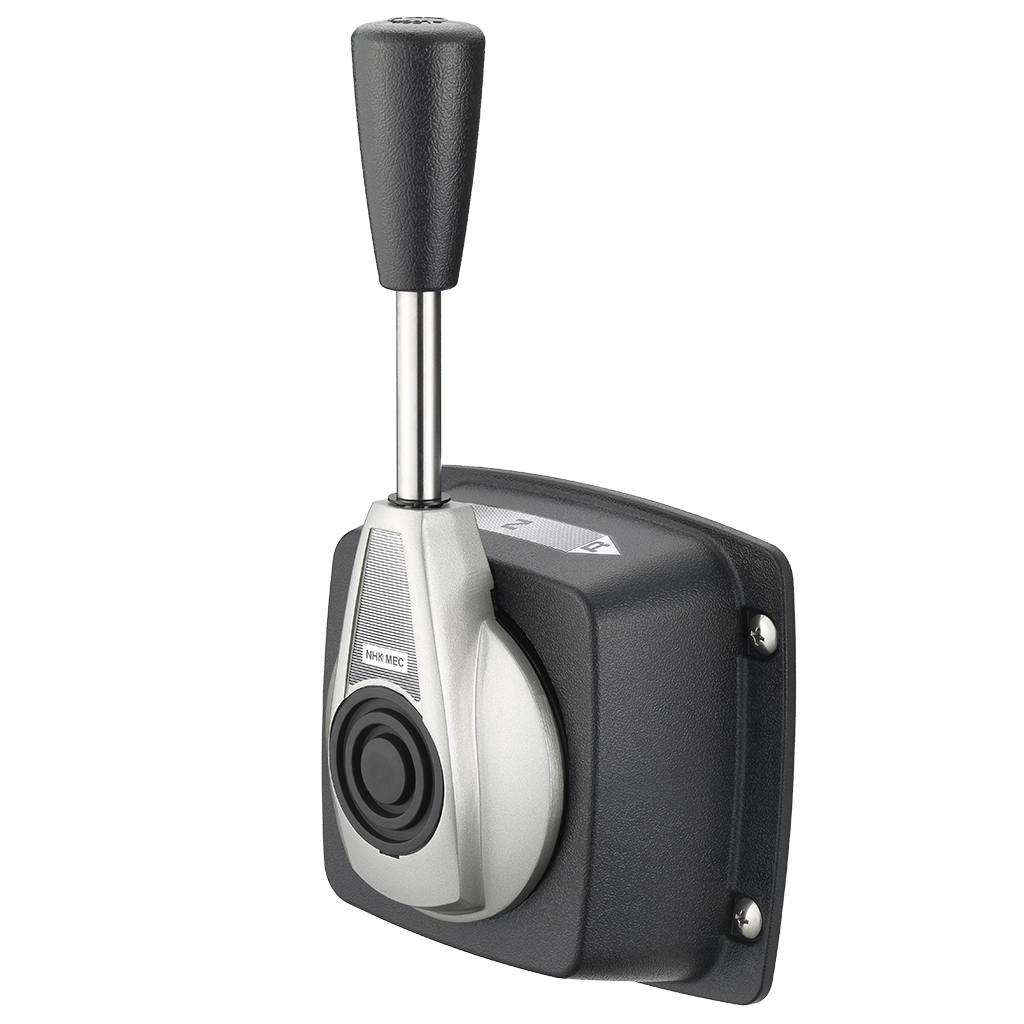

KL SIDE

KL SIDE

  • net weight 2.7kg　(gross 3.1kg)

Features

The original single lever / dual function control that includes a built-in selectable fixed throttle lever position capability. Enhanced durability via improved water & corrosion resistance specifications. Comes in 2 mounting styles: Top Mount & Side Mount.

Main Part Numbers

Throttle Type Clutch Type Calbe Type KL TOP R/H KL TOP L/H KL SIDE
Pull to open Pull forward 30S. Inch NA1001-00 NA1028-00 NA1101-00
Push forward NA1002-00 NA1022-00 NA1102-00
Push to Open Pull forward NA1003-00 — NA1103-00
Push forward NA1004-00 NA1019-00 NA1104-00
Pull to open Pull forward 30S.mm NA1011-00 NA1029-00 NA1111-00
Push forward NA1012-00 NA1023-00 NA1112-00
Push to open Pull forward NA1013-00 — NA1113-00
Push forward NA1014-00 NA1020-00 NA1114-00

Options

Part No. Name
NJ0205-00 Neutral safety switch (SIGP)
NJ0201-00 Wire harness kit



Instruction Manual KL-TOP
Icon

008KL TOP Instruction Manual

1 file(s) 2.02 MB
Instruction Manual
KL-SIDE
Icon

008KL SIDE Instruction Manual

1 file(s) 706.89 KB
Instruction Manual
 Drawing KL-TOP
Icon

008KL TOP Drawing

1 file(s) 17.74 KB
Drawing
KL-SIDE
Icon

008KLSIDE Drawing

1 file(s) 6.36 KB
Drawing




Inquire about
this product

Product information may be subject to change without notice. Products may be discontinued without prior notice.
